X Ray Image Intensifier 4 Inch 100μM High Resolution

Brand Name : HAMAMATSU

Model Number : V10905P

Certification : CE, FDA

Place of Origin : JAPAN

MOQ : 1

Payment Terms : T/T

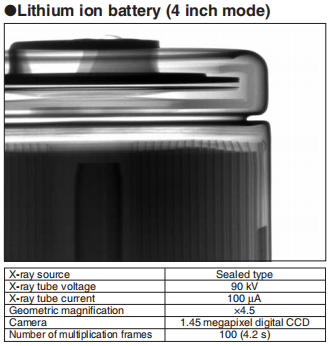

X-ray source : Sealed type

X-ray tube voltage : 90 kV

X-ray tube curent : 100μm

Camera : 1.45 megapixel digital CCD

Number ofmultiplicaton frames : 100 (4.2 s)

Contact Now

X Ray Image Intensifier Low Scatter Input High Sensitivity Fluoroscopy in Medical Imaging
High-performance X-ray image intensifier designed for medical imaging applications, featuring low scatter input and high sensitivity fluoroscopy capabilities.
Key Features
  • Low distortion imaging
  • Optimized for high magnification (2 inch mode)
  • High resolution and contrast output
  • Compatible with various camera types (Analog, Digital, etc.)
Applications
Ideal for a wide range of industrial and medical imaging applications:
Industrial X-ray CT Non-destructive inspection In-line X-ray inspection

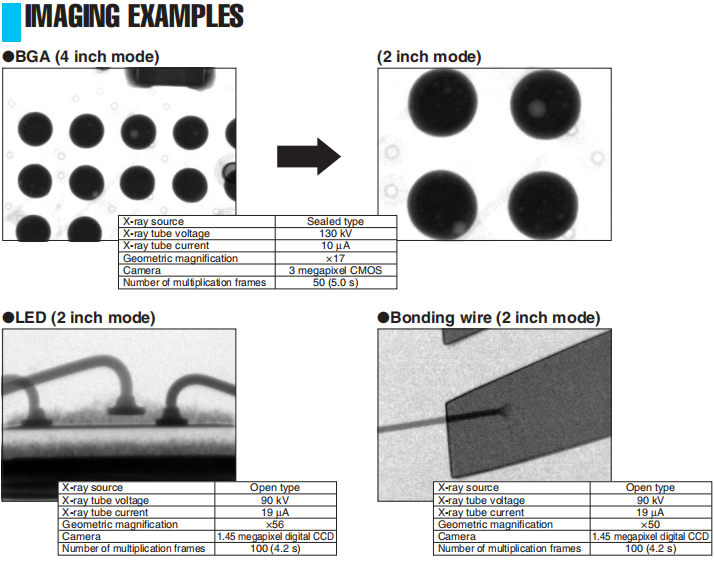

Applicable Samples
Electronic components Printed circuit boards Plastic components Metal components Food products Beverages
X Ray Image Intensifier 4 Inch 100μM High Resolution
Technical Specifications
X-ray I.I. Parameters
Parameter Description/Value Unit
Input window material (Thickness) Aluminum(t0.5mm) —
Input phosphor material Csl —
Output phosphor material P43 or equivalent —
Input surface field-of-view size (4 inch mode) φ99 mm
Input surface field-of-view size (2 inch mode) φ50 mm
Output image size φ20 mm
Resolution (on input surface)(Typ.) (4 inch mode) 100 Lp/cm
Resolution (on input surface)(Typ.) (2 inch mode) 110 Lp/cm
Conversion factor 3.4 cd/m²/uGy/s
Shading (Min.) 60 %
Contrast ratio 14 —
Operating ambient temperature +10 to +40 °C
Storage temperature -10 to +45 °C
Operating and storage humidity Below 85% (no condensation) —
Weight Approx. 8.0 kg

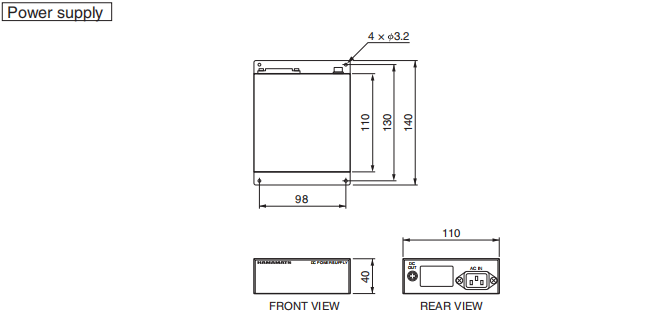

Power Supply Specifications
Parameter Description/Value Unit
Input voltage (AC) 100 to 240 V
Output voltage (DC) 24 V
Power consumption 30 VA
Weight Approx. 0.5 kg
X Ray Image Intensifier 4 Inch 100μM High Resolution X Ray Image Intensifier 4 Inch 100μM High Resolution X Ray Image Intensifier 4 Inch 100μM High Resolution X Ray Image Intensifier 4 Inch 100μM High Resolution
