Customizable Automatic X Ray Inspection PCB IL-3000 With 5" HD FPD

Name: Customizable Automatic X Ray Inspection PCB IL3000 With 5quot HD FPD
Brand: WELLMAN
Price: 1 USD

Brand Name : WELLMAN

Model Number : IL-3000

Certification : CE, FDA

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Packaging Details : Wooden case

Type : Microfocus

Max tube voltage : 90kV

Max tube current : 200μA

Focal spot size : 5μm

Detectable area : Length 520mm, width 80-430mm adjustable

Contact Now

Automatic X-Ray Inspection Machine IL-3000

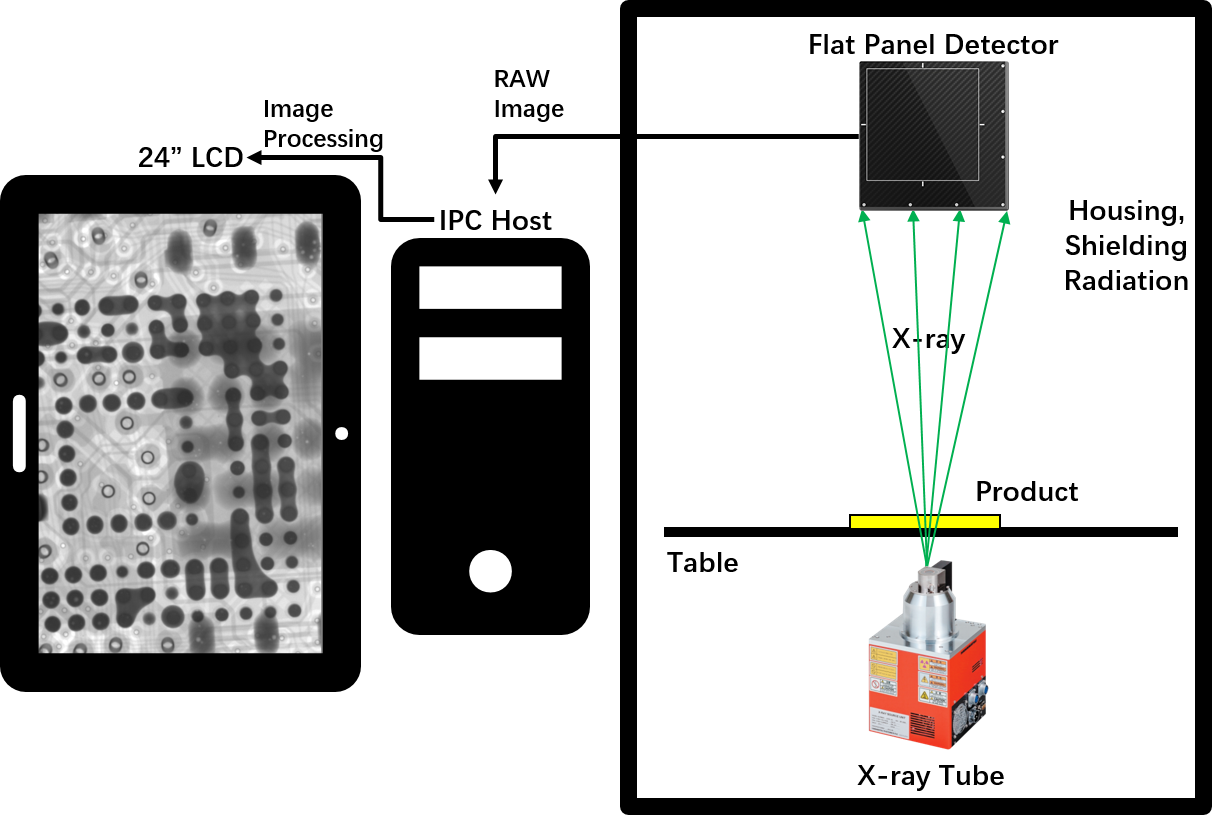

Working Principle

Customizable Automatic X Ray Inspection PCB IL-3000 With 5" HD FPD

Key Advantages

Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
New generation 5" HD digital flat panel detector (FPD)
Automatic navigation window - table moves to clicked position
Belt transmission with width adjustment (max width 620mm)
6-axis motion system with servo motors (X-ray tube and FPD move synchronously)
Customizable inspection procedures for automated high-volume inspection
Intuitive operation with minimal training required (2 hours)

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector
Brand	IRay
Effective area	130mm * 130mm
Pixel size	85μm
Resolution	1536 * 1536
Frame rate	20fps
Tiltable angle	60°

Inspection System
Transmission	Belt
Motor	Servo motor
Detectable area	Length 520mm, width 80-430mm adjustable
Max load	10kg

Equipment Specifications
Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	2600mm (L) * 1300mm (W) * 1800mm (H)
Host machine dimensions	1400mm (L) * 1300mm (W) * 1800mm (H)
Weight	2200kg
Power supply	AC110-220V 50/60HZ
Max power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer	24" HDMI LCD

Safety Features

Radiation leakage: No leakage (≤1μSv/h, international standard)
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock system
Electromagnetic safety switch locks when X-ray is active
Emergency stop button located near operation position
Automatic tube protection when software is exited

Software Functions

Basic Operation

Full keyboard and mouse control
Mouse-click X-ray tube control with real-time voltage/current display
Status bar showing interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast and gain
Product parameter saving and recall for efficient inspection
Navigation window for precise table positioning
Real-time motion axis coordinate display
Inspection result display with measurement data
Adjustable axis movement speeds (slow, normal, fast)

Voids Rate Measurement

Automatic calculation of voids rate, solder ball area, circumference, etc.
Adjustable grayscale threshold, pixel, contrast, and size filtering parameters
Manual void addition via polygon or freehand drawing
Parameter saving for consistent product inspection

Measurement Functions

Distance measurement between points
Distance rate calculation for through-hole soldering
Angle measurement between points
Radius measurement for circular components
Perimeter measurement for square components

Automatic Inspection

Manual inspection point setting
Array inspection for regular patterns
Automatic feature recognition for distinctive inspection points

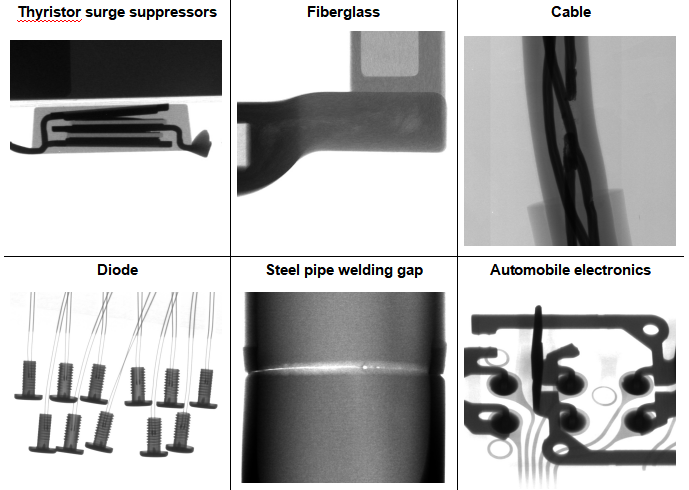

Application Examples
